Correct SCTransform-normalized Seurat data
Source:vignettes/articles/SCTransform.Rmd
SCTransform.RmdSCTransform is normally fit separately per
batch before merging — that’s Seurat’s own recommended way to run
it ahead of integration. That means each batch’s residuals live on a
different, non-comparable scale. RunCanek()’s default
correctEmbeddings = TRUE corrects in PCA-embedding space,
and by default reuses whatever "pca" reduction already
exists on the object instead of computing its own (see Correct log-normalized Seurat data for that
default path). For SCTransform-normalized data specifically, we should
reconcile the per-batch normalizations so that the batch-to-batch scale
mismatch is accounted for in the correction. This vignette shows the
reconciliation Seurat itself provides for exactly this problem, and how
RunCanek() uses it — using the same ifnb
dataset as Seurat’s
own integration tutorial and the main Seurat
vignette here.
ifnb is loaded from the SeuratData package
rather than CRAN, so it needs a one-time install the first time you use
it:
if (!requireNamespace("SeuratData", quietly = TRUE)) {
install.packages("remotes")
remotes::install_github("satijalab/seurat-data")
}
SeuratData::InstallData("ifnb")
library(Canek)
library(Seurat)
#> Loading required package: SeuratObject
#> Loading required package: sp
#>
#> Attaching package: 'SeuratObject'
#> The following objects are masked from 'package:base':
#>
#> intersect, t
library(SeuratData)
#> ── Installed datasets ──────────────────────────────── SeuratData v0.2.2.9002 ──
#> ✔ ifnb 3.1.0 ✔ panc8 3.0.2
#> ────────────────────────────────────── Key ─────────────────────────────────────
#> ✔ Dataset loaded successfully
#> ❯ Dataset built with a newer version of Seurat than installed
#> ❓ Unknown version of Seurat installedCreate and SCTransform-normalize per batch
We split ifnb by stim into separate
per-batch objects and normalize each one independently with
SCTransform — mirroring how you’d normally run it ahead of
integration.
ifnb <- LoadData("ifnb")
#> Validating object structure
#> Updating object slots
#> Ensuring keys are in the proper structure
#> Warning: Assay RNA changing from Assay to Assay
#> Ensuring keys are in the proper structure
#> Ensuring feature names don't have underscores or pipes
#> Updating slots in RNA
#> Validating object structure for Assay 'RNA'
#> Object representation is consistent with the most current Seurat version
#> Warning: Assay RNA changing from Assay to Assay5
x <- SplitObject(ifnb, split.by = "stim")
x <- suppressWarnings(lapply(x, SCTransform, verbose = FALSE))
#> `vst.flavor` is set to 'v2' but could not find glmGamPoi installed.
#> Please install the glmGamPoi package for much faster estimation.
#> --------------------------------------------
#> install.packages('BiocManager')
#> BiocManager::install('glmGamPoi')
#> --------------------------------------------
#> Falling back to native (slower) implementation.
#> `vst.flavor` is set to 'v2' but could not find glmGamPoi installed.
#> Please install the glmGamPoi package for much faster estimation.
#> --------------------------------------------
#> install.packages('BiocManager')
#> BiocManager::install('glmGamPoi')
#> --------------------------------------------
#> Falling back to native (slower) implementation.What happens without reconciling first
If we just merge the independently-normalized batches and call
RunCanek() without computing a joint PCA on reconciled data
first, it stops with an error:
naive <- merge(x[[1]], x[[2]])
DefaultAssay(naive) <- "SCT"
RunCanek(naive, "stim")
#> Error:
#> ! No existing 'pca' reduction found, but assay 'SCT' is SCTransform-normalized. Canek can't safely compute its own PCA from SCTransform residuals fit per batch,
#> since they are on different scales (see SCTransform documentation).
#> To implement Canek, first reconcile the normalized data and compute a joint PCA first, e.g.:
#> features <- SelectIntegrationFeatures(object.list, nfeatures = 3000)
#> object.list <- PrepSCTIntegration(object.list, anchor.features = features)
#> x <- merge(object.list[[1]], object.list[[2]], ...)
#> x <- RunPCA(x)
#> then call RunCanek() again.Reconciling the per-batch models
RunCanek()‘s error points at the fix: select integration
features across the independent models, reconcile the batches’ residuals
onto a comparable scale for those features
(PrepSCTIntegration), merge, and compute a joint PCA on the
reconciled data.
features <- SelectIntegrationFeatures(x, nfeatures = 3000)
x <- suppressWarnings(PrepSCTIntegration(x, anchor.features = features))
x <- merge(x[[1]], x[[2]])
DefaultAssay(x) <- "SCT"
VariableFeatures(x) <- features
x <- RunPCA(x, verbose = FALSE)UMAP before correction
x <- RunUMAP(x, reduction = "pca", dims = 1:ncol(Embeddings(x, "pca")),
reduction.name = "umap_uncorrected", verbose = FALSE)
#> Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
#> To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
#> This message will be shown once per session

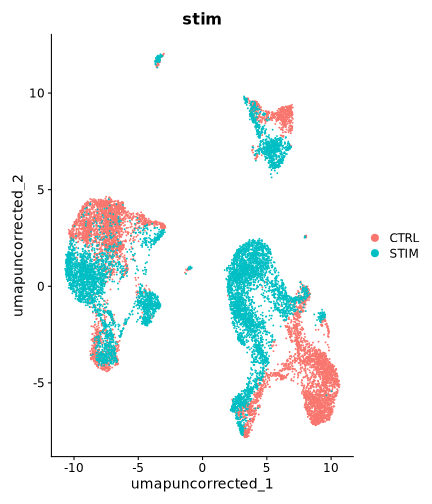

DimPlot(x, reduction = "umap_uncorrected", group.by = "stim")
plot of chunk unnamed-chunk-6

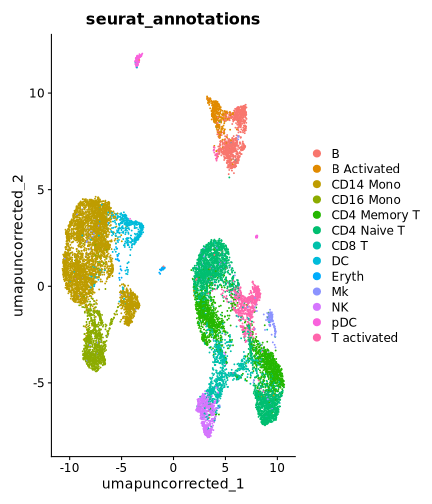

DimPlot(x, reduction = "umap_uncorrected", group.by = "seurat_annotations")
plot of chunk unnamed-chunk-6
Run Canek
With a "pca" reduction now present on properly
reconciled data, RunCanek() reuses it directly instead of
recomputing one — the SCT assay is auto-detected, so we don’t need to
pass assay = "SCT" explicitly.
x <- RunCanek(x, "stim")
Reductions(x)
#> [1] "pca" "umap_uncorrected" "canek"
ncol(Embeddings(x, "canek"))
#> [1] 50UMAP after correction
As with the log-normalized workflow, downstream steps should use the
"canek" reduction directly rather than re-running
ScaleData/RunPCA on the SCT assay.
x <- RunUMAP(x, reduction = "canek", dims = 1:ncol(Embeddings(x, "canek")),
reduction.name = "umap_corrected", verbose = FALSE)

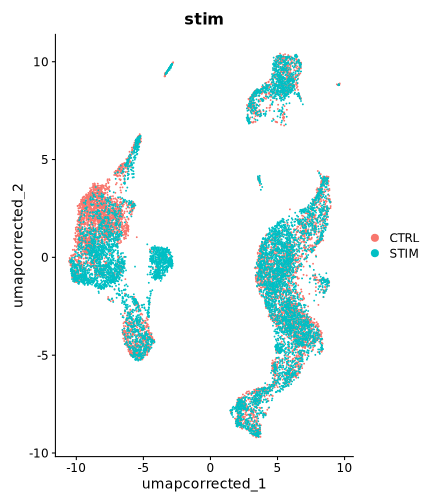

DimPlot(x, reduction = "umap_corrected", group.by = "stim")
plot of chunk unnamed-chunk-8

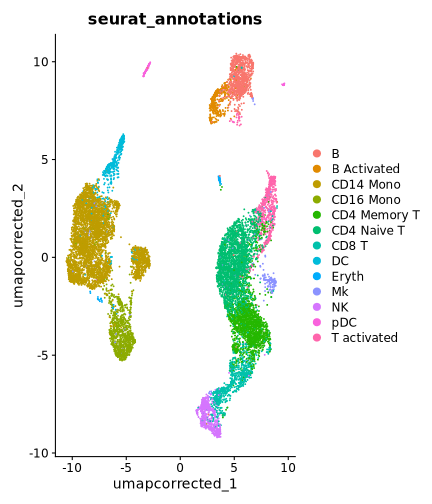

DimPlot(x, reduction = "umap_corrected", group.by = "seurat_annotations")
plot of chunk unnamed-chunk-8
